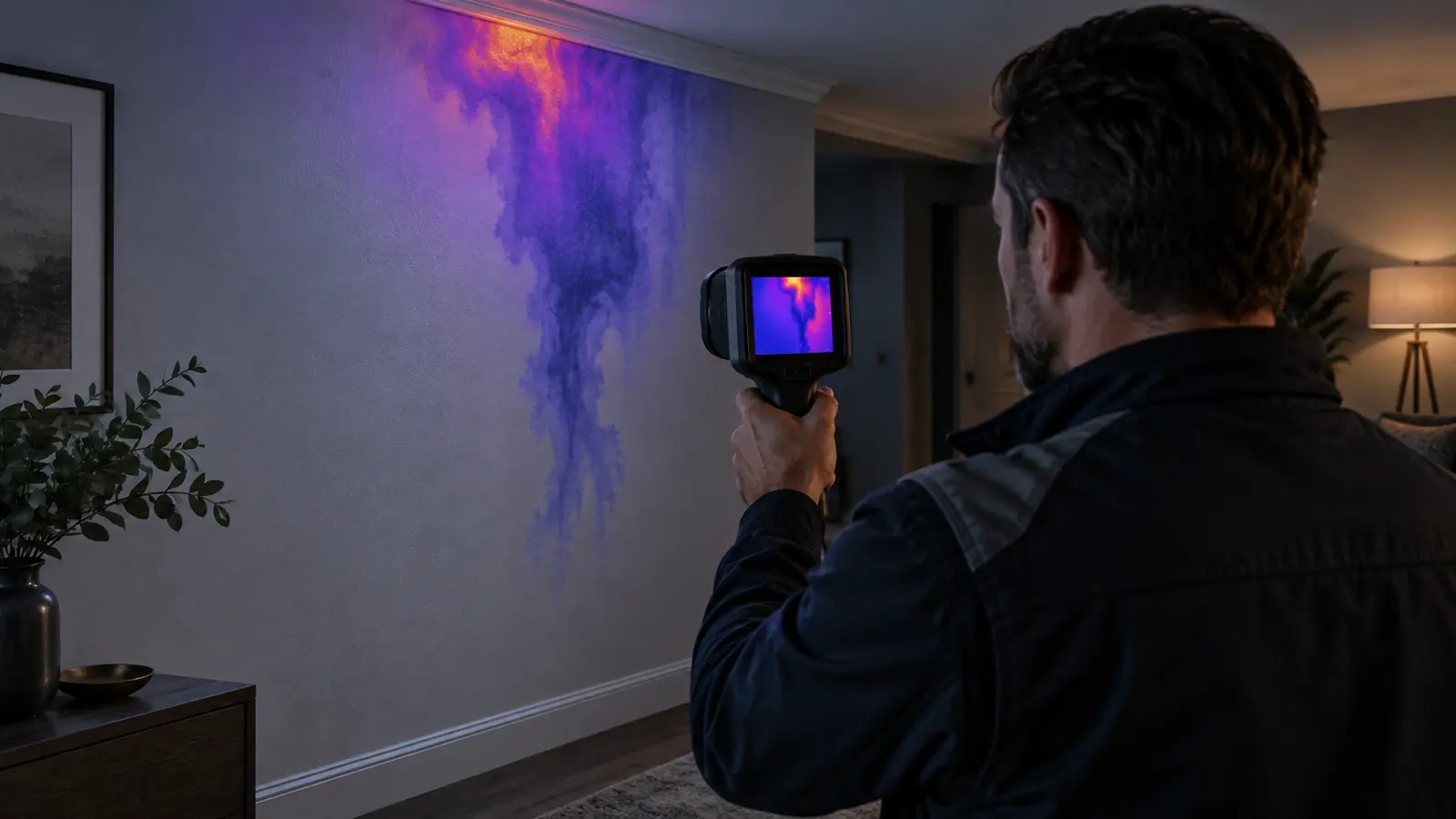

A stain appears on the ceiling, paint starts to blister, or the water meter keeps moving with every tap closed. Thermal cameras are often described as tools that can “see a leak behind the wall.” It is a useful shortcut, but not an accurate description of what the instrument does.
Thermography measures infrared radiation from a surface. It can show that one part of a wall, floor, or ceiling behaves differently from the surrounding material. Moisture may cause that difference, but so can missing insulation, an air leak, a thermal bridge, or a perfectly sound pipe.
What the camera actually detects
Water can change a surface temperature in several ways. Evaporation often cools the material. Water also adds thermal mass, so a damp area may warm up and cool down more slowly than a dry one. A leaking hot-water pipe can instead create a warmer path across the surface.
Shape matters as much as color. An anomaly that runs down from a fitting, spreads beneath a window, or follows a slope is more meaningful than an isolated cold patch. Blue, red, and rainbow palettes do not prove anything by themselves: they only map relative surface temperatures.
When leak detection works best
The camera needs thermal contrast. An active or recent leak is usually easier to spot than a wall that has returned to equilibrium. Briefly warming an underfloor-heating circuit can reveal the pipe layout and interruptions. On damp plaster, evaporation may strengthen the cool pattern.
Direct sunlight, a nearby radiator, or air conditioning blowing across the wall can create convincing false signals. When possible, let the room stabilize, move furniture away from the surface, and compare the suspect area with a section built from the same materials.
A five-step inspection method
- Start with context. Note visible damage, likely pipe routes, recent weather, and heating or cooling conditions.
- Scan the whole area. Read the overall temperature pattern before zooming in on one patch.
- Tighten the span. Use a manual temperature scale to reveal subtle differences without turning normal image noise into a defect.
- Read the pattern. Look for continuity, a plausible origin, and a shape consistent with gravity or pipe routing.
- Confirm the finding. Check the strongest anomalies with a suitable moisture meter and locate the actual source before opening the structure.
Common thermal patterns
| Observed pattern | Possible explanation | Next check |
|---|---|---|
| Irregular cool trace descending from a ceiling | Leak or ingress from above | Moisture meter and inspection upstairs |
| Warm halo following a line | Hot-water pipe or underfloor heating | Briefly change the circuit temperature |
| Perfectly straight vertical cold band | Stud, thermal bridge, or missing insulation | Compare with the structure and adjacent walls |
| Cold area beside an air vent | Air movement rather than moisture | Switch ventilation off and repeat |
Which camera specifications matter?
Thermal sensitivity before pixel count
Moisture-related differences may be only a few degrees. Thermal sensitivity (NETD) therefore matters: the lower the value, the smaller the temperature difference the camera can distinguish. Fluke recommends 100 mK or better for moisture work, with lower values providing more useful contrast.
Enough resolution to cover the surface
More native pixels help when scanning a broad wall or working from farther away. For close-range building checks, 256 × 192 is often a versatile starting point, but it is not a universal minimum. Field of view, distance, and target size must be considered together. Use our spot-size calculator to see what one pixel represents on the surface.
Manual span and focus
A controllable temperature span is more valuable than a long list of color palettes. Focus matters for small details and longer distances. A visible-light image or fusion mode also makes it easier to relocate and document the anomaly.
Mistakes that lead to opening the wrong place
- treating every cold patch as water;
- relying on one image without a reference area;
- allowing automatic span to change between comparison shots;
- confusing the visible moisture path with the source of the leak;
- reporting a diagnosis without an independent moisture check.
A thermal camera cannot tell you how deep the water is, see through tile, or automatically separate leakage from condensation. Its real strength is speed: it can screen a large area, reduce the scope of intrusive checks, and document conditions before and after a repair.
To compare suitable devices, see our guide to the best thermal cameras for moisture detection, then narrow the database with the camera selector.
Frequently asked questions
Can a thermal camera see through walls?
No. It measures the apparent temperature of the surface. It may reveal the thermal effect of something hidden, but it does not create an image of the wall interior.
Does a blue area mean water is present?
No. Blue only marks a cooler part of the selected palette. Insulation, airflow, shade, and structural elements can produce the same appearance.
Do I still need a moisture meter?
Yes. Professional guidance from FLIR and Fluke recommends confirming thermal anomalies with a moisture measurement or another appropriate method.
What is the best time to inspect?
There is no single best hour. Choose conditions that create contrast between damp and dry material, while avoiding direct sun, heaters, or airflow that could generate false differences.
Sources
- FLIR How to detect a water leak with thermal imaging
- FLUKE Why thermal imaging is essential for detecting moisture damage
- HIKMICRO How to find a water leak using a thermal imaging tool
Thermography is a non-destructive screening tool. It does not replace moisture confirmation or professional investigation of the cause when damage is significant.
