Resolution is the most visible thermal-camera specification and one of the easiest to misread. Moving from 160 × 120 to 640 × 480 does not make temperature measurements four times more accurate. It provides sixteen times as many thermal measurement points in each frame.

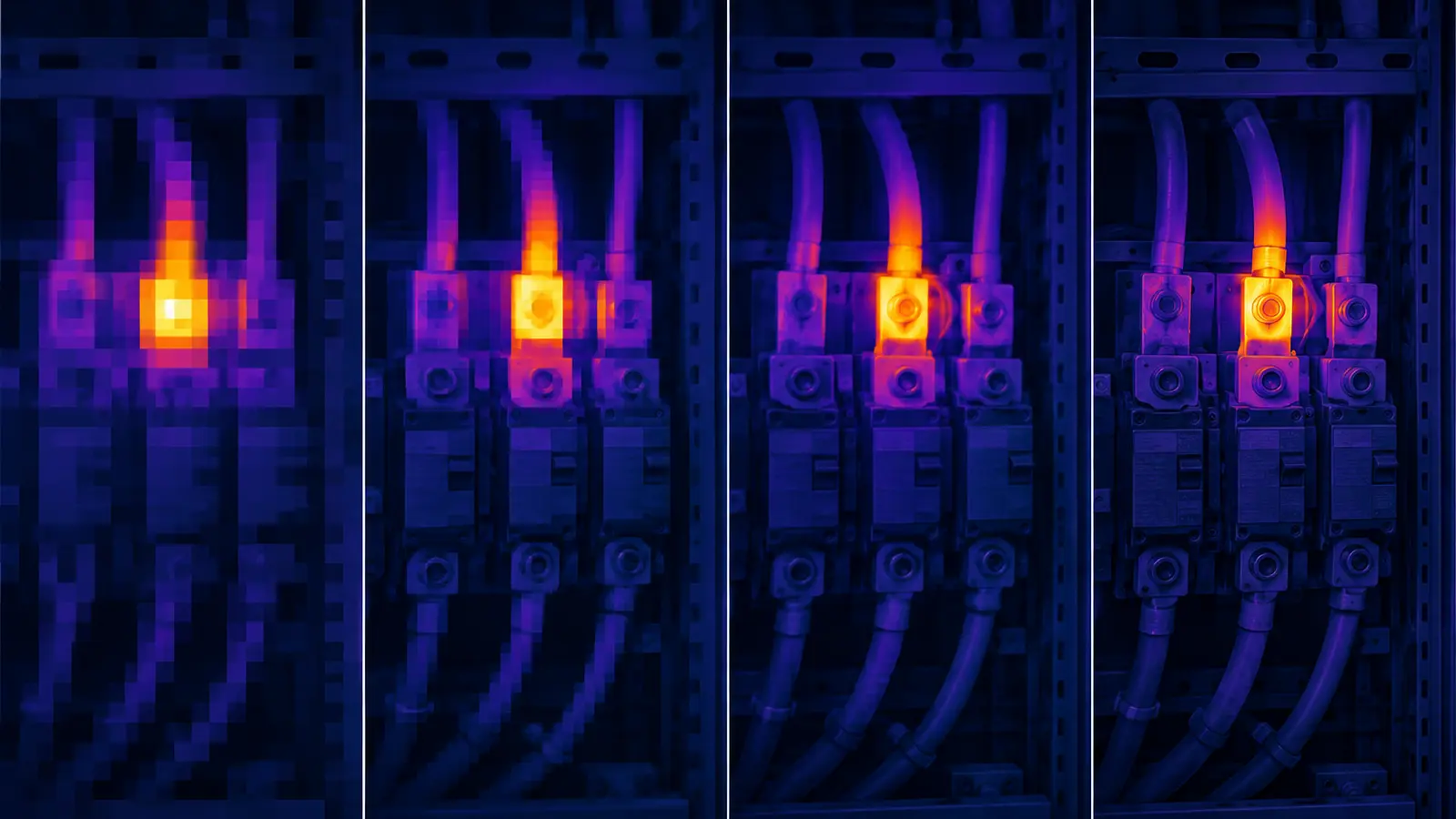

That difference can be decisive when looking for a small hot connection inside an electrical cabinet or inspecting a roof from the ground. It may add little value when a large target already fills most of the image at close range.
A thermal pixel is a measurement point
Native resolution describes the detector array. A 256 × 192 sensor contains 49,152 thermal pixels, each receiving radiation from a small part of the scene. This is not the display resolution or the dimensions of the exported image.
| Native resolution | Thermal pixels | Practical reading |
|---|---|---|
| 80 × 60 | 4,800 | Large anomalies at close range |
| 160 × 120 | 19,200 | Basic checks and reasonably large targets |
| 256 × 192 | 49,152 | Versatile level for buildings and maintenance |
| 320 × 240 | 76,800 | Professional reporting and finer detail |
| 640 × 480 | 307,200 | Small targets, longer distances, and demanding analysis |
What resolution improves — and what it does not
More pixels separate nearby details, keep a target on more detectors, and extend useful working distance when field of view is similar. They also let you frame a broad façade without losing every small anomaly.
Resolution does not guarantee better temperature accuracy, lower NETD, or correct focus. A poorly focused 640 × 480 camera with weak sensitivity can produce less useful evidence than a good 320 × 240 model.
Distance turns pixels into a real target size
The same sensor may be excellent at one metre and inadequate at ten. Instantaneous field of view (IFOV) describes the angle covered by one pixel. At a given distance, that angle becomes a real footprint on the target.
Consider four sensors using the same 50° horizontal lens at a distance of 3 metres. The scene is about 2.80 metres wide:
| Horizontal resolution | Width per pixel at 3 m | Effect |
|---|---|---|
| 160 pixels | ≈ 17.5 mm | A small electrical terminal occupies very few pixels |
| 256 pixels | ≈ 10.9 mm | The outline becomes easier to separate |
| 320 pixels | ≈ 8.7 mm | More margin for fine detail |
| 640 pixels | ≈ 4.4 mm | The target spans four times as many pixels as at 160 |
One pixel is not enough for a reliable measurement of a small target. Manufacturer calculators commonly use several pixels — often 3 × 3 or more — for dependable radiometry. Check your case with our IFOV calculator or spot-size calculator.
Resolution by application
Home inspection, insulation, and moisture
At a few metres, 160 × 120 can locate broad defects. A 256 × 192 detector gives substantially more room for thermal bridges, moisture patterns, and window details. Thermal sensitivity still matters just as much as pixel count.
Electrical and industrial maintenance
Resolution becomes more valuable as safety distance grows and components get smaller. 320 × 240 or 384 × 288 is a strong general professional level. 640 × 480 makes sense for small connections, dense equipment, or inspections performed from a fixed distance.
Electronics
On a circuit board, minimum focus distance and a macro lens may matter more than headline resolution. A 256 × 192 sensor with genuine macro optics can resolve a component that a 640 × 480 camera unable to focus close up will never show sharply.
Roofing, solar, and remote inspection
Resolution and focal length work together. More pixels retain detail, while a narrower lens places more pixels on a distant area. Field of view must therefore be compared alongside detector resolution.
Native resolution, super resolution, and digital zoom
Super-resolution processing may improve readability by combining acquisitions or reconstructing an image. Digital zoom simply enlarges existing pixels. Neither should be confused with a detector that captures more thermal samples at the same instant.
Our guide to thermal super resolution explains how to separate native detector size, interpolation, and final file dimensions.
Other specifications to check
- NETD: for separating subtle temperature differences;
- field of view and focal length: for scene coverage and working distance;
- focus: fixed for simplicity, manual or autofocus for varied distances;
- minimum focus and macro: critical for small components;
- radiometric accuracy: separate from image detail;
- frame rate: important when the scene or operator moves.
The right resolution is not simply the highest one you can afford. It is the resolution that places enough pixels on your smallest target at the real working distance, with suitable optics and sensitivity. The Thermogram camera selector can then narrow the database by application.
Frequently asked questions
Is 256 × 192 enough?
Often yes for building work, routine maintenance, and close-range inspection. The answer still depends on target size, distance, and field of view.
Is 640 × 480 four times better than 320 × 240?
It contains four times as many pixels, but it is not automatically four times more accurate. NETD, optics, focus, and temperature accuracy remain independent.
Does display resolution matter?
It improves viewing comfort, not the amount of thermal information captured. Look for the detector's native IR resolution.
Can I compensate for low resolution by moving closer?
Yes, when access and safety allow it. Moving closer puts the target on more pixels. That may be impossible around energized equipment, roofs, or elevated installations.
Sources
- FLIR Thermal camera specs you should know before buying
- FLIR How far can you measure? Spot size ratio matters
- FLUKE Field-of-view and spot-size calculator
- HIKMICRO Spot-size calculator
Pixel-footprint examples are simplified geometric calculations for a 50° horizontal field of view. Reliable measurement requires several pixels on the target and also depends on the actual lens.
